First Xbox One Schematics SoC, GPU, CPU, Audio

Published by: forahobby on 2013-08-28Category: TechnicalDifficulty: 0/10Page Views: 16727
Microsoft has unveiled the first technical details for the XBox One today at Hot Chips 25.

The Xbox One supports shared coherent memory between 8 AMD Jaguar cores and it's DX 11.1+ GPU, includes 8G DDR3 memory which peaks at 68GB/sec, 264GB/s total memory bandwidth, and a 500 GB Hard Drive.

Xbox One Motherboard Components

Keep an eye on our own official Xbox One vs. PS4 Specs page as we try to keep you all updated with the latest Xbox One information right here on XBOXONE-HQ.

Xbox One Specs:
  • Custom Jaguar x86-64 cores, two clusters of 4 cores
  • 68 GB/sec peak bandwidth to off-chip 8GB DDR3 memory.
  • 204 GB/s peak bandwidth to 32MB of on-die storage.
  • 47MB of cache
  • 8G DDR3 and 8G FLASH
  • Coherent Shared Memory
  • Memory sharing & bandwidth (HSA HUMMA)
  • DX11.1+ GPU @ 1.71 BILLION POLYGONS A SECOND
  • 264GB/s total mem bandwidth
  • GPU CONTAINS 15 co processors
  • 500 GB HARD DRIVE ++
  • Audio offload processor 15 GFLOPS

  • XBox One Main SoC (System on a chip)


    Xbox One SOC

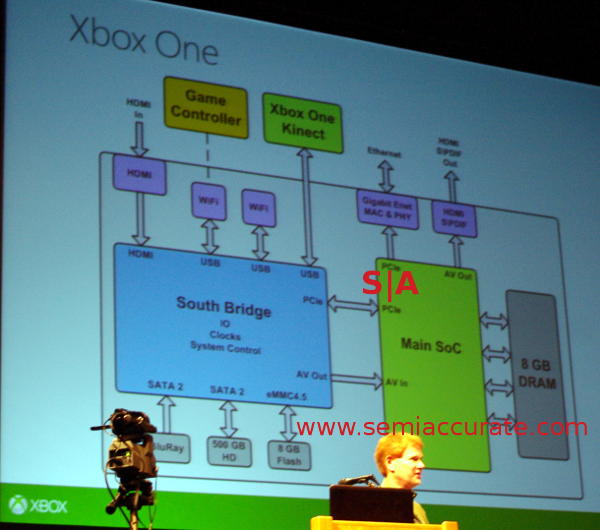

    XBox One System


    Xbox One System Schematic

    Xbox One CPU


    Xbox One CPU Schematic

    Xbox One GPU


    Xbox One System Schematic

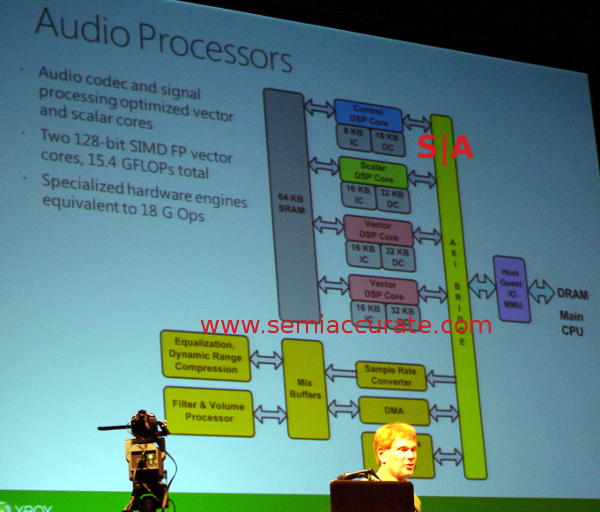

    XBox One audio diagram


    Xbox One Audio System Schematic

    Related URL: semiaccurate.com
